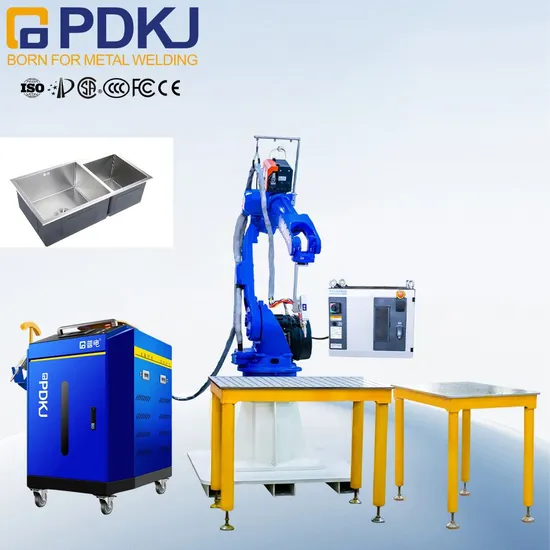

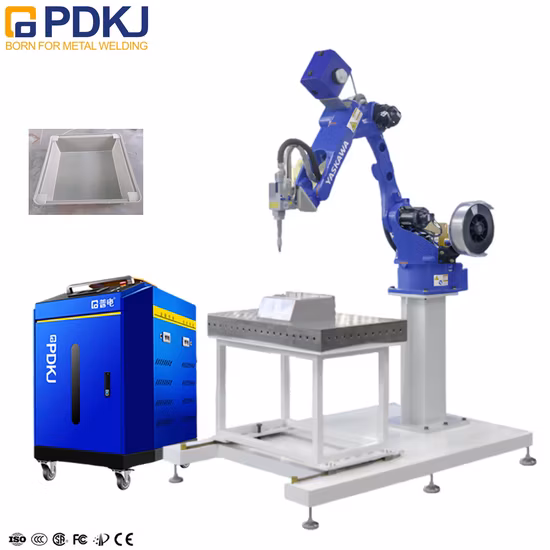

Intelligent Robot Laser Welding Machine Six

Basic Info.

Model NO.	1500W 2000W 3000W
Laser Classification	Optical Fiber Laser
Type	Automatic Laser Welding Machine
Cooling-Water Machine	Dvt
Switching Power Supply	Meanwell
Laser Device Brand	Max
Robot Brand	Yaskawa ABB
Laser Head Brand	Xinghong
Transport Package	Wooden Case
Specification	2400mm*2400mm*2400mm
Trademark	Grand Laser
Origin	China
HS Code	8515809090
Production Capacity	50 Sets Per Month

Product Description

technical specification	CH1500	CH2000	CH3000
Maximum laser power	1500W	2000W	3000W
Optical maser wavelength	1080nm+5nm	1080nm+5nm	1080nm+5nm
Fiber output quantity	Route 1	Route 1	Route 1
Depth of field	3mm stainless steel	4.5mm stainless steel	5mm stainless steel
	1.5mm aluminium alloy	3mm aluminium alloy	3mm aluminium alloy
Overall power	4KW	5.5KW	10KW
Voltage input	AC220V+10%/3P+PE	AC220V+10%/3P+PE	AC380V+10%/3P+PE
Type of cooling	Water cooling	Water cooling	water cooling
Optical fiber type	QBH	QBH	QBH
Fiber diameter	50um	50um	50um
Fiber length	8m	8m	15m

Comparison of welding advantages

serial number	category	details
1	depth of fusion	Strong penetration, large depth to width ratio
2	weld width	Narrower than argon arc welding, the beam is about 0.4mm. It can reach 0-5mm after swinging
3	deformation	The heat affected zone is small and the deformation of full welding is minimal
4	surface effect	The heat affected zone is small and the deformation of full welding is minimal
5	welding quality	High quality, can reduce the optimized base material impurities The tensile strength is 1.2 times that of the base material, and the brittleness is improved
6	welding surroundings	Less smoke, less welding slag
7	welding speed	Fast speed, normal use speed of 20- 40 mm/s

Product superiority:
Six axis linkage, can complete any space trajectory, any posture movement. Stable and reliable action, long life, fast movement, high positioning accuracy, high reduplication accuracy. Program change flexible, high degree of automation. Large welding range.
The equipment humanized operation, simple and easy to learn, do not need professional welders, can achieve "turnkey" project.
Efficient and stable maintenance free, can be 24 hours uninterrupted work, instead of manual.
Details:

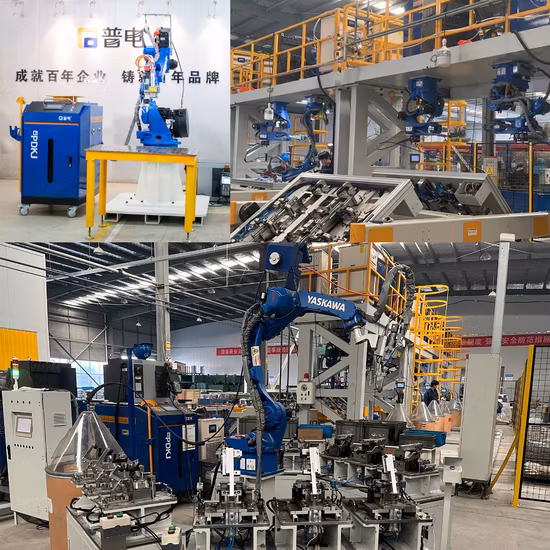

Sample picture:
