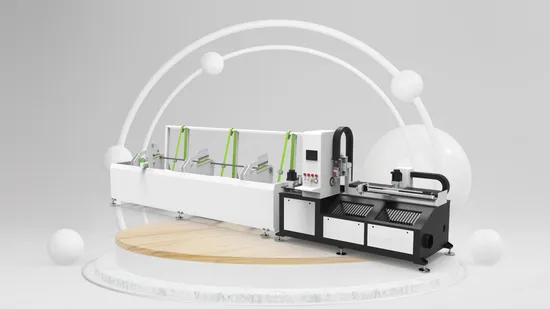

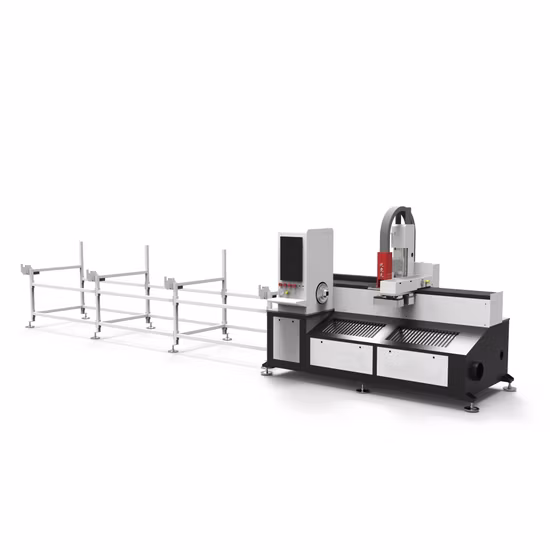

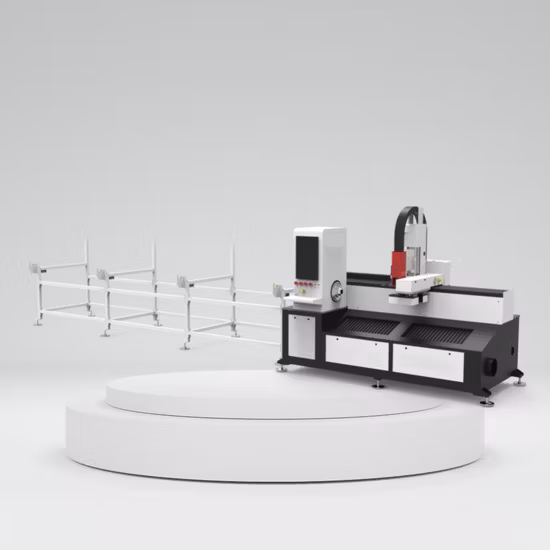

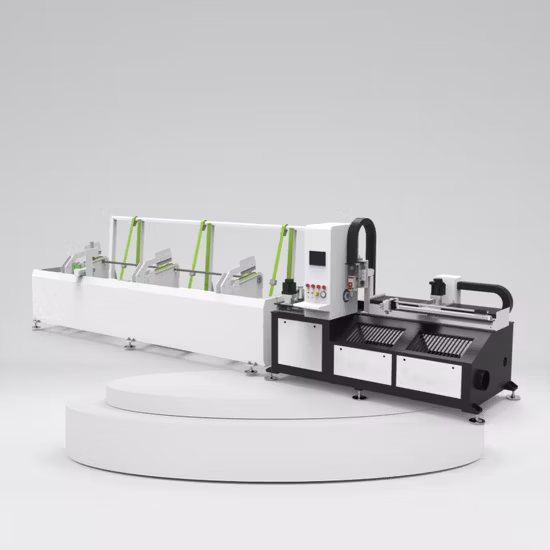

Automatic Feeding CNC Fiber Laser Cutting Machine for Round Square Tube Pipe
Basic Info.
| Model NO. | G120 |
| Structure Type | Machine Tool |
| Laser Classification | Laser Tube Cutting |
| Laser Technology | Laser Control Fault Cutting |
| Support Tube Shapes | Circular Square |
| Numerical Control System | China Brand Win7/10 |
| Transport Package | Plywood Case |
| Specification | 1750*1100*2000mm |
| Trademark | Norman |
| Origin | China |
| HS Code | 8456100090 |
| Production Capacity | 5000set/Year |
Product Description
Product DescriptionBasic Info.
Due to the continuous improvement of social living standards, consumers have put forward more requirements on the appearance quality and style of products. Traditional cutting ways have not succeeded to meet the modern market demand. The application of laser cutting technology not only improves the working efficiency of processing, but also makes the procedure more delicate. Laser pipe cutting machine is suitable for auto parts, kitchen bathroom hardware, electric bicycles, medical machinery, sports equipment, furniture and other industries.
Product ParametersStandard configuration
| No. | Item | Brand/Origin |
| 1 | Fiber laser | China |
| 2 | Laser cutting head | China |
| 3 | CNC system (including control software) | China |
| 4 | chuck | China |
| 5 | servo motor and driver | Japan |
| 6 | Precision reducer | Japan |
| 7 | X and Y gear rack | Taiwan YYC |
| 8 | Ball screw | Taiwan |
| 9 | Linear guide | Taiwan |
| 10 | Pneumatic system | Japan |
| 11 | Laser chiller | China |
| 12 | Electrical component | France/China |
| 13 | Electric control cabinet and operating station | China |
| 14 | Machine bed | China |
| 15 | Beam (Pipe cutting type) | China |
| 16 | Air compressor (optional) | China |
Product Parameters
| Model No. | G90 | G120 |
| Maximum Cutting Diameter | Φ85mm | Φ115mm |
| Maximum raw material length | 6100mm | 6100mm |
| CNC or Not | CNC | CNC |
| Laser power | 1-3KW | 1-3KW |
| Pipe cutting precision | ±0.2mm | ±0.2mm |
| External size (excluding material rack) | 1750×1100×2000mm | 1750×1100×2000mm |
| Power Supply | 380v/50Hz | 380v/50Hz |
| Warranty | 1 Year | 1 Year |
Features
1.This kind of machine has heavy-duty aerodynamic chuck to clamp. Chucking power is large and stable. It doesn't loosen anddamage the work piece ,has a wide processing range and can clamp the large diameter pipe with high cutting stable accuracy.2.It has many technics such as cutting the circular tube and square tube, opening holes and cutting an arch.3.It has high stability machine tool base,releases stress by high temperature tempering to ensure the machine avoids deformationand maintain high precision for a long time. Detailed Photos
Applied Materials
Our 3D laser pipe cutting machine is suitable for metal cutting with all kinds of metal pipe.Such as stainless steel,iron pipe and so on.Packaging & Shipping
Company ProfileOur AdvantagesAfter Sales Service
1.We provide 12 months warranty for the machine.2.Our company is responsible for free installation, software upgrade, life-long maintenance online.3.After receiving the customer's repair call, the after-sales engineer can have a clear reply4.Network remote service. Our engineer could provide technical support and train for you on the net, we can visit you if necessary.5.Professional after-sales service system, providing guarantee, installation guide, maintenance guide, etc. for users' uninterruptedprocessing.
Q1: There are so many machine types, which one should I choose?
A: Our 3D laser cutting technology is not only improves the working efficiency of processing, but also makes the procedure moredelicate. Laser pipe cutting machine is suitable for all kinds of metals.Low cost with high efficiency.Q2: This is my first time buying your machine, I have no ideas about your machines quality?
A: Each machine is strictly produced based on the standard of ISO9000-2000, ISO14001-2004.We are confident to tell customersthat there is no need to worry about our quality.Q3: When I got this machine, but I don't know how to use it. What should I do?
A:There are video and English manual with the machine. If you have any questions, we can talk by telephone or email.Q4: What's material can fiber laser cut?
A: All kinds of metal, such as Stainless Steel, Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, Brass, Copper, etc.Q5: If some problems happen to this machine during warranty period, what should I do?
A: We will supply free parts during machine warranty period if machine have some problems. Replacement of damaged parts forfree(make sure it is not broken because of wrong operation). If you have any question, just contact us freely.
